OPS03 Digitalized Orbital Welding Power Supply

Product Categories

Kunshan Huaheng Welding Co., Ltd.

Contact Now

Model : OPS03

Dimension : 527mm×389mm×279mm

Power Source Type : Inverter

Duty Cycle : 200A 30% / 110A 100%

Input Voltage : 220V±10% 50/60Hz

Power Rating : 4.2KVA

Current Control Accuracy : ±0.1A

Contact Now

Digital Inverter Core, BUS Communication, Real-time Data Exchange

EMC Electromagnetic Compatibility Design, Reduced EMI for Computers/Controllers

High-Speed Precision Control, PID Control Algorithm, Stable Arc Motion

Current Control Accuracy: ±0.1A

MES System Integration, Real-time Weld Data Output

Built-in Industrial IoT Gateway, Firmware Over-The-Air

Wide Voltage Input: 220V±15%

Duty Cycle	200A 30% / 110A 100%
Input Voltage	220V±10% 50/60Hz
Power Rating	4.2KVA
Control Features	Shielding Gas,Current,Rotating Arc
Program Storage	999
Multi - Zone Control	20
Dimensions (L×W×H)	527mm×389mm×279mm
Net Weight (w/o Cooling Water)	21kg

Redesigned / Easy Clamping / Precision Control / Optimized Performance

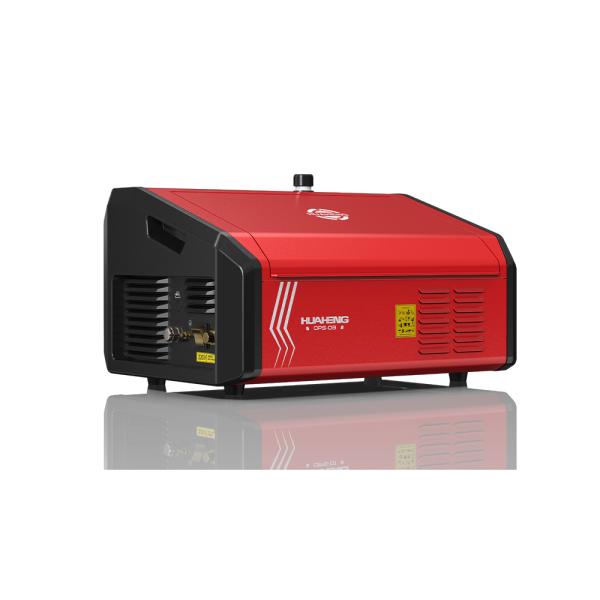

OPS03 Digitalized Orbital Welding Power Supply Images
